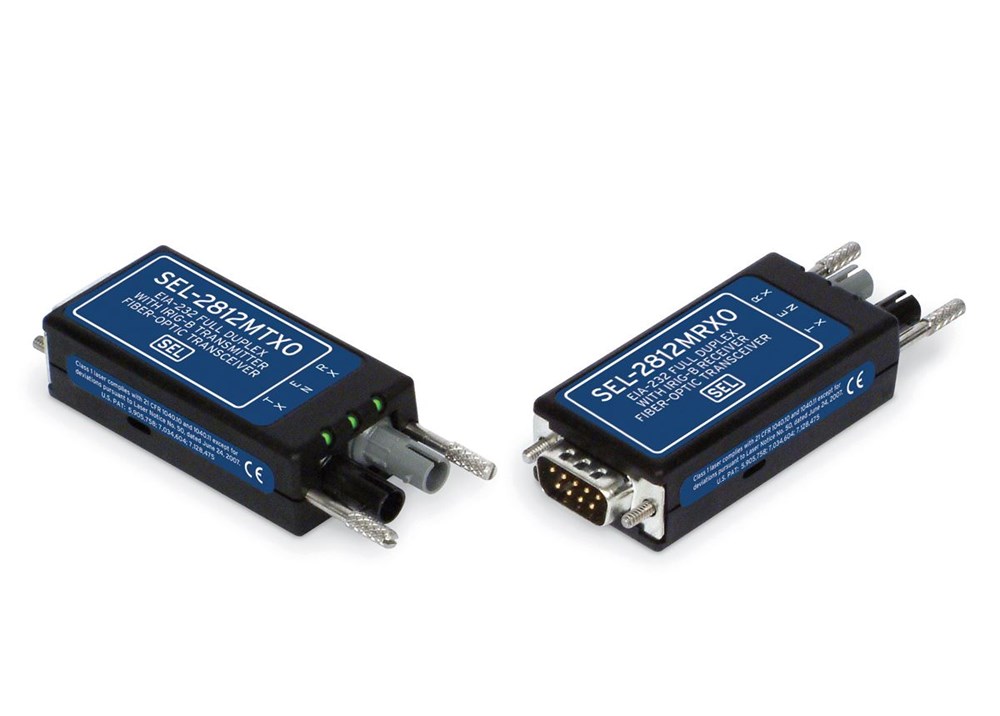

SEL-2812MTX0 FIBER-OPTIC TRANCEIVERS WITH IRIG-B

MULTIMODE UP TO 4KMS

EIA-232 CONNECTOR : MALE DB-9

IRIG-B – TRANSMITTER

Fiber-Optic Link—Connect a pair of transceivers and an SEL-C808 Multimode 62.5/125 µm Core Fiber-Optic Cable with ST connectors for EIA-232 communication between devices over a fiber-optic link. Create a link from 1 m to 4 km in length using SEL-2812 Fiber-Optic Transceivers With IRIG-B.

Fast Data Rates—Transfer data at rates up to 115 kbps with the SEL-2812. The SEL-2812 transfers data and IRIG-B time codes.

Safe and Secure Communications—Isolate communications connections from ground potential rise and electrical interference. The SEL-2812  also has an option for conformal coating, which provides extra protection from the effects of chemical contaminants in the air to printed circuit boards.
